Six places these 905 nm modules do their work. Each section states the constraint, then lists the modules that fit — start from your platform and follow it to a spec sheet.

One module, many payloads

The same 905 nm DToF core adapts from a helmet sight to a drone gimbal to a fence-line sensor. What changes is reach, weight and the shape that fits — never the eye-safety class.

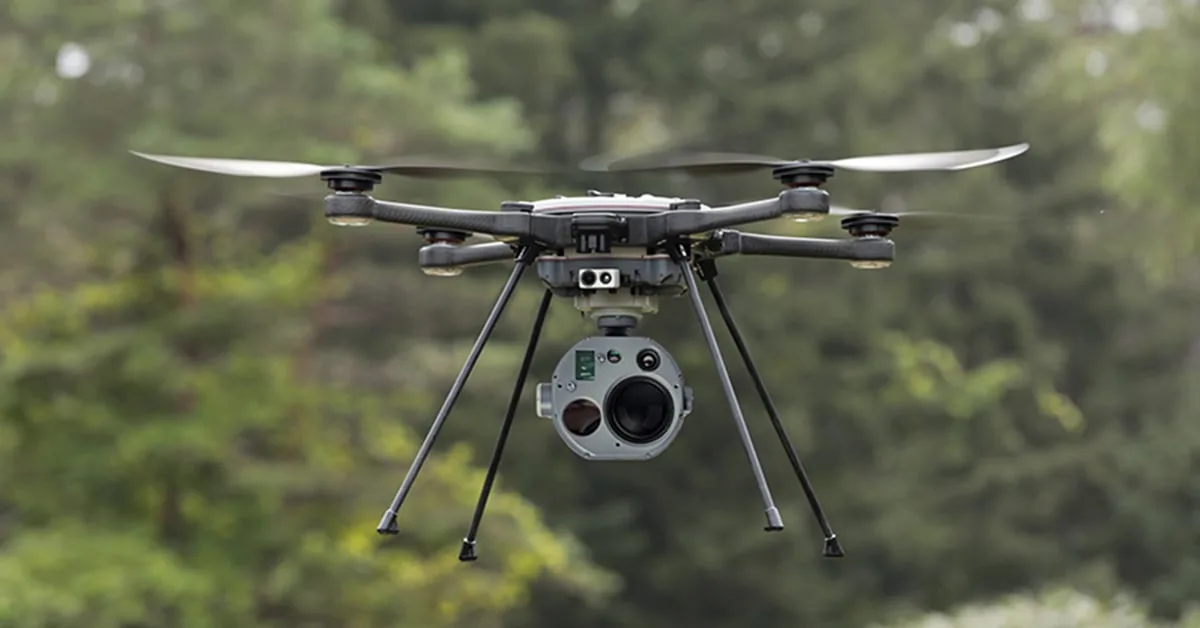

EO/IR gimbal with laser rangefinder module on a multirotor UAV
905 nm ranging in an EO/IR gimbal payload

Night vision & thermal sights

A range readout that fits the eye-safety and weight budget of a clip-on or monocular.

For handheld and helmet optics, the ranging module can't dominate the SWaP budget or push the device out of Class-1. A 6–20 g 905 nm module ranges the target and reports over UART-TTL, leaving the optical designer free to keep the sight light. Because 905 nm stays Class-1 eye-safe, it is usable for training and operation around people.

Modules that fit

  • SPD mini — night vision & thermalSPD1200N0
    Range0.2–1,200 m (1,500 m night)
    Accuracy±0.3 m (≤100 m)
    Weight≈ 5 g

    View spec sheet →

Catalog families for this application

Also referenced for this application: SPD1200M2, LR1000B23, SPD1200H2. These are legacy or archive SKUs without a current model page on this site — ask us for the current equivalent.

UAV & drones

Altitude hold, terrain following and target cueing where every gram of payload is contested.

On a stabilized EO/IR gimbal, adaptive output lets the module trade refresh rate for range as the scene changes. The flagship reaches 3,000 m from a 12 g body; the S2G variant adds an integrated gyroscope so distance and attitude arrive together for moving-platform geolocation.

Modules that fit

Catalog families for this application

Security & surveillance

Perimeter ranging, gate control and trigger sensing on continuous outdoor duty.

Fixed and pan-tilt installations need modules that survive dust and weather and keep measuring. IP67 lens cavities, MIL-STD-810G shock/vibration qualification and eye-safe emission make the D and E series a fit for gates, fence lines and traffic points.

Modules that fit

Catalog families for this application

Also referenced for this application: LR1200D23, SPD1200Z2, LR1500D23. These are legacy or archive SKUs without a current model page on this site — ask us for the current equivalent.

Industrial monitoring & robotics

Obstacle and level sensing for mobile robots, AGVs and fixed process monitoring.

A robot or a fixed line sensor needs a distance reading it can poll continuously without babysitting the module — adaptive frequency, a UART-TTL frame simple enough for an embedded controller, and a body sized to bolt straight into a chassis or enclosure. The single-point DToF short-range line adds sub-1,500 m sensors from 1 g for obstacle avoidance and safety curtains, alongside the E-adaptive and SPD-integration series for continuous industrial measurement, indoor or out.

Modules that fit

Catalog families for this application

Also referenced for this application: SPD1200S2. These are legacy or archive SKUs without a current model page on this site — ask us for the current equivalent.

Handheld optics

Meter-class ranging for portable instruments and sport optics that still have to fit in the hand.

A compact 905 nm module drops into telescopes and rangefinder binoculars where more reach is needed than a short-range sensor gives, but the housing still has to sit in the objective bell. Accuracy is specified to ±0.7 m near range on the flagship, ±1 m across the tube and adaptive series.

Modules that fit

Catalog families for this application

Also referenced for this application: LR1000C3, LR1000B23. These are legacy or archive SKUs without a current model page on this site — ask us for the current equivalent.

Surveying & mapping

A ranging core for total stations, laser levels and mapping rigs that needs to hold accuracy across a full working day.

Survey and mapping instruments need consistent, repeatable distance readings across the working range, not just a single headline maximum. The flagship's ±0.7 m near-range accuracy and the D-class1 tube series' sealed IP67 optics suit both handheld total-station-style tools and fixed mapping rigs that spend the day outdoors, while the E-adaptive series covers longer-reach outdoor positioning work.

Modules that fit

Catalog families for this application

Also referenced for this application: LR1500D23. These are legacy or archive SKUs without a current model page on this site — ask us for the current equivalent.
